PROFILPROJEKTOR STARRETT HF 600

Calibration Laboratory No. 2277 is modernizing its calibration equipment in line with developments in the field of length / plane angle measurement. With the development of new standards in the field of calibration, we emphasize the maximum accuracy of measured values during the calibration of our customers‘ gauges and measuring equipment. We carefully select the equipment that will serve these calibrations, ensuring they possess top-of-the-line parameters for measuring the required values.

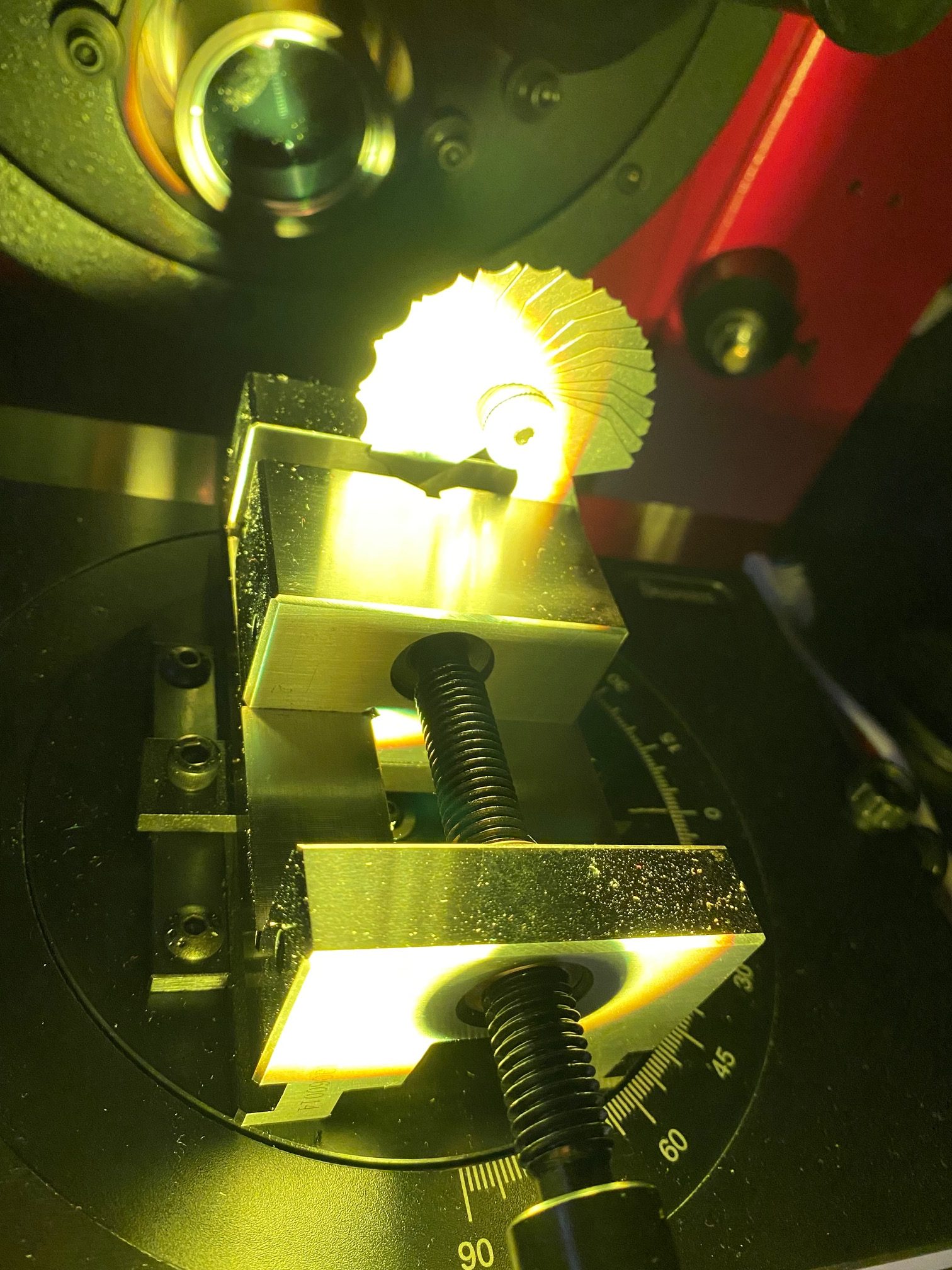

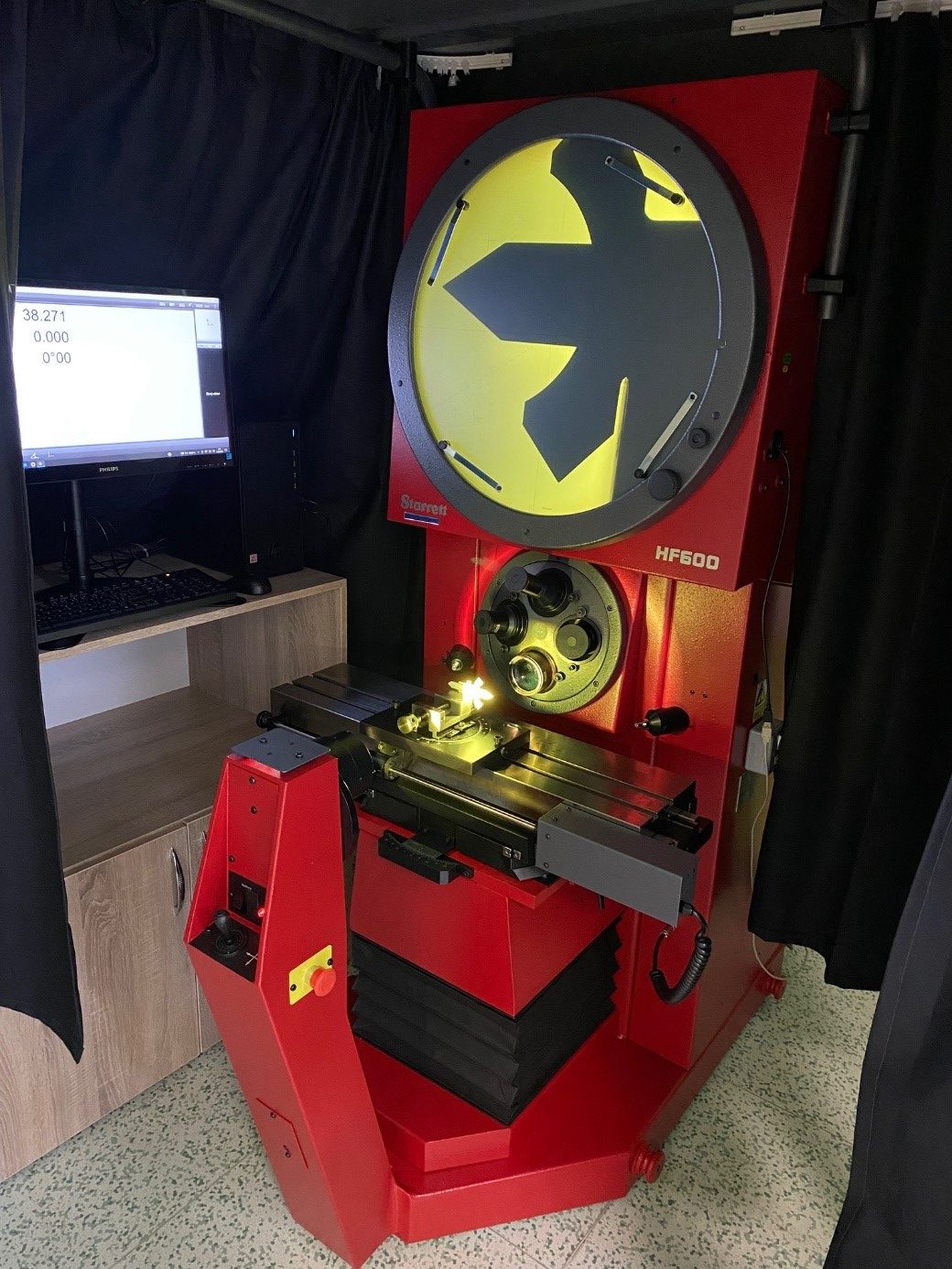

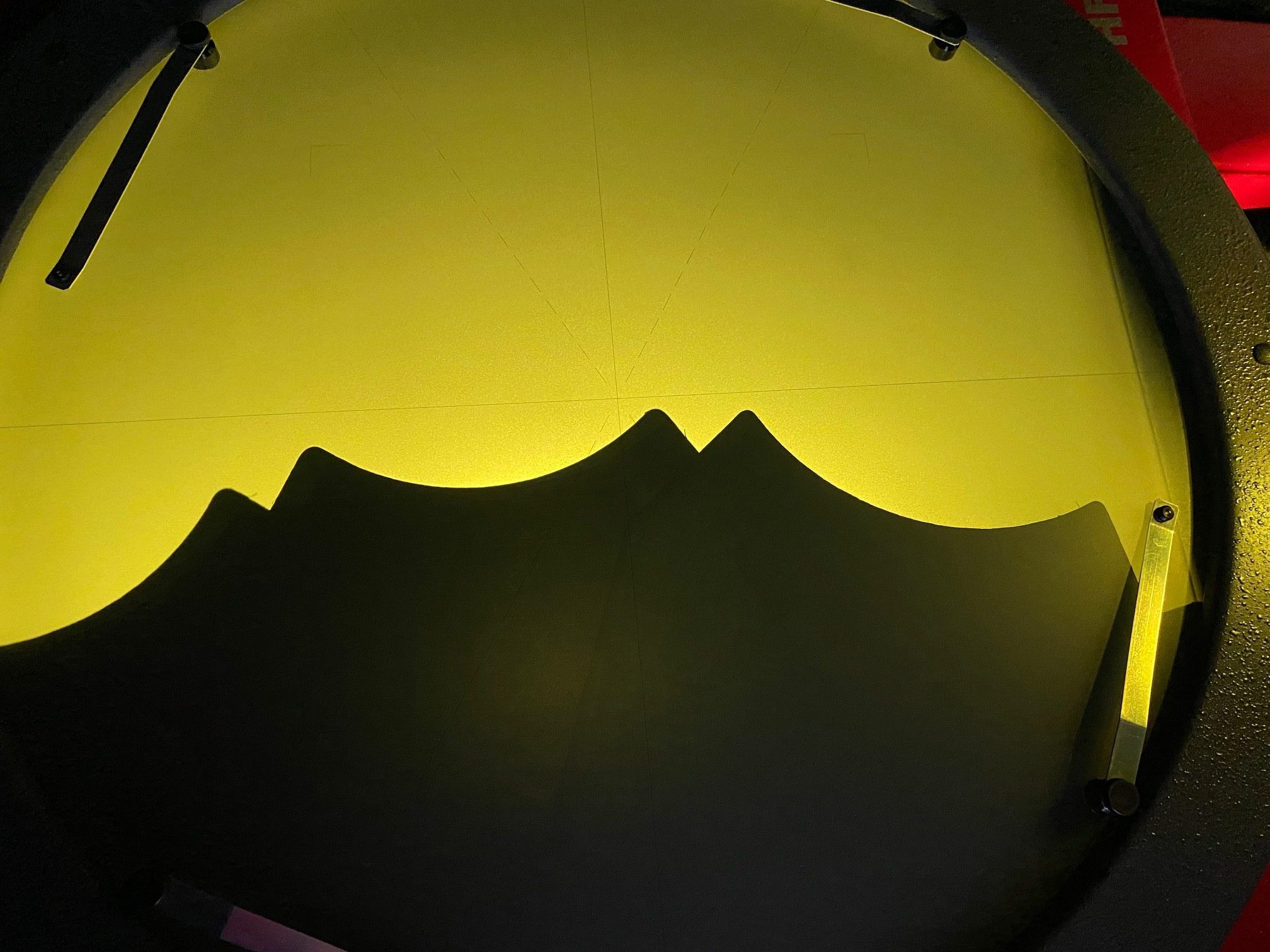

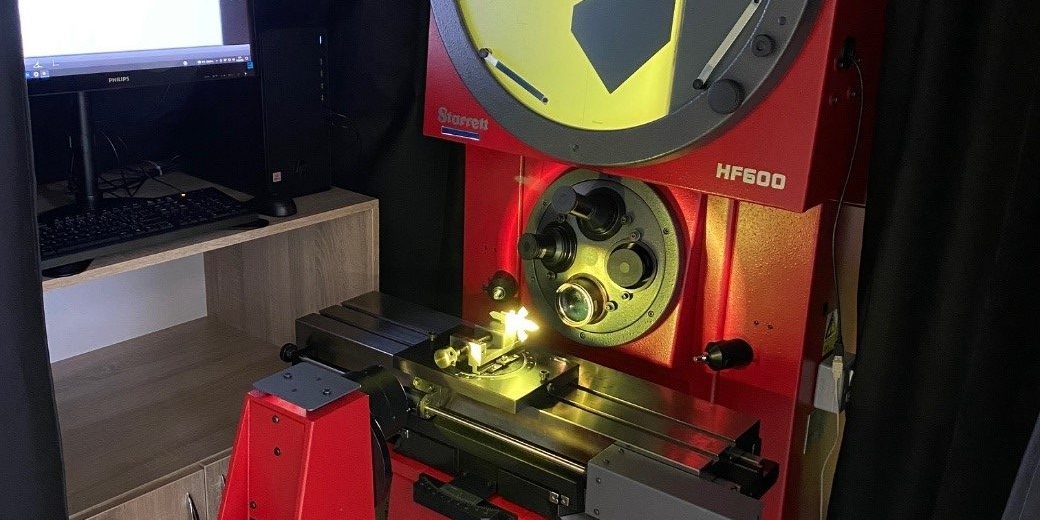

Here, I would like to introduce our new standard, the cutting-edge Starrett HF600 horizontal profile projector, which, as its name suggests, boasts a large 600 mm screen with an internal automatic edge sensor and digital readout when rotating the screen’s crosshairs.

Further description of the HF600 profile projector:

• Motorized precision cross table with dimensions of 630×230 mm
• Illumination of measured surfaces and scales via fiber optic cables
• Revolving nosepiece for four lenses with 10x, 20x, 50x, 100x magnification
• Built-in rotating condenser for two lenses with a green filter
• Iris diaphragm for high-magnification lens condenser
• Joystick control

The ML210-METLOGIX M2 evaluation unit includes:

• Automatic calculation of geometric features and their relationships

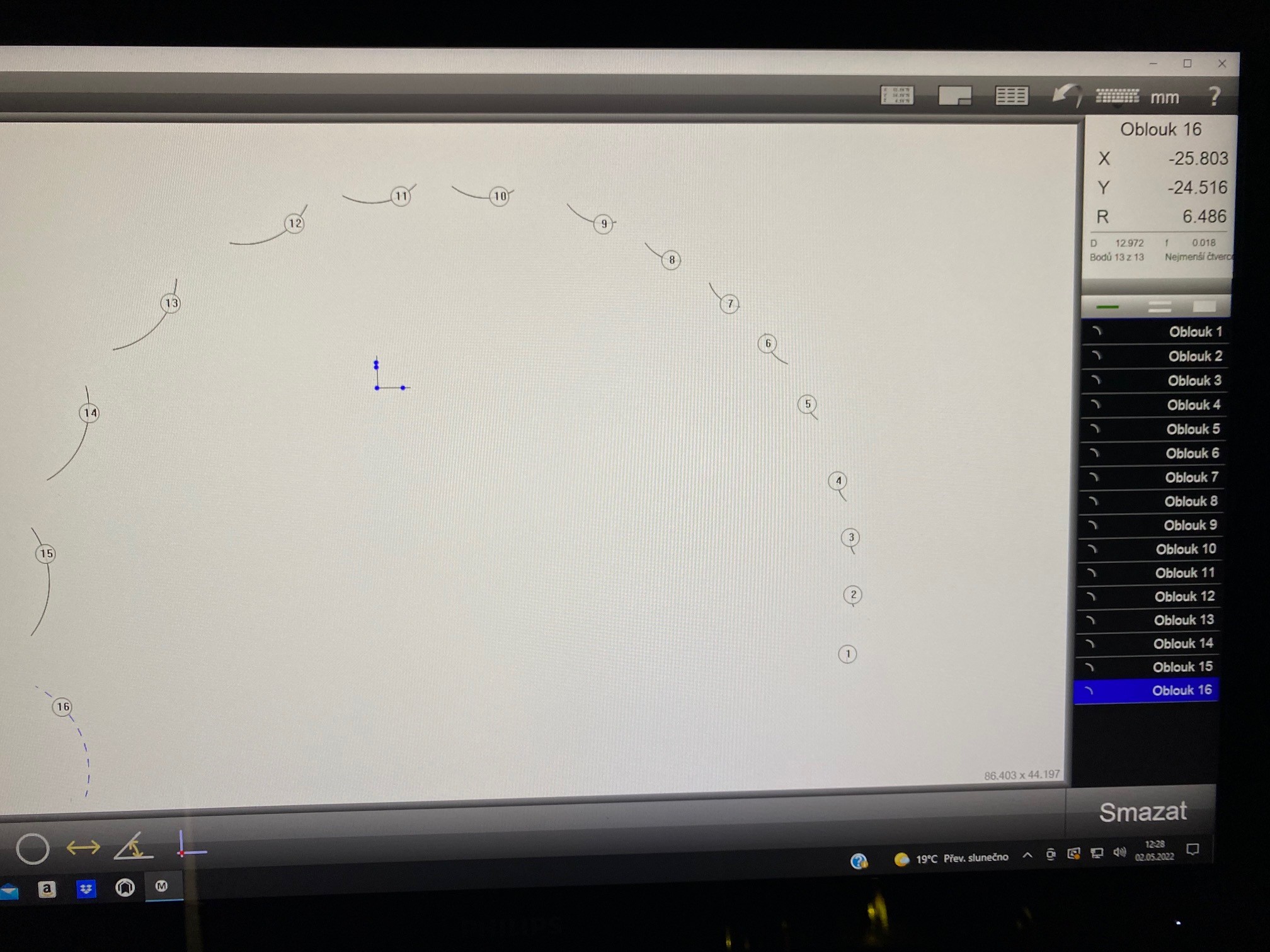

• Graphical display of measured features
• Graphical display of solved geometric calculations
• Calculation of form tolerances
• Linear accuracy correction
• Transfer of measured data
